Mercedes-Benz Transmission

722.9

The Mercedes-Benz 722.9 is a 7-speed automatic transmission with electronic shift control.

Years
2003–2020
Speeds
7
Control
Electronic
Max torque
1000 N·m

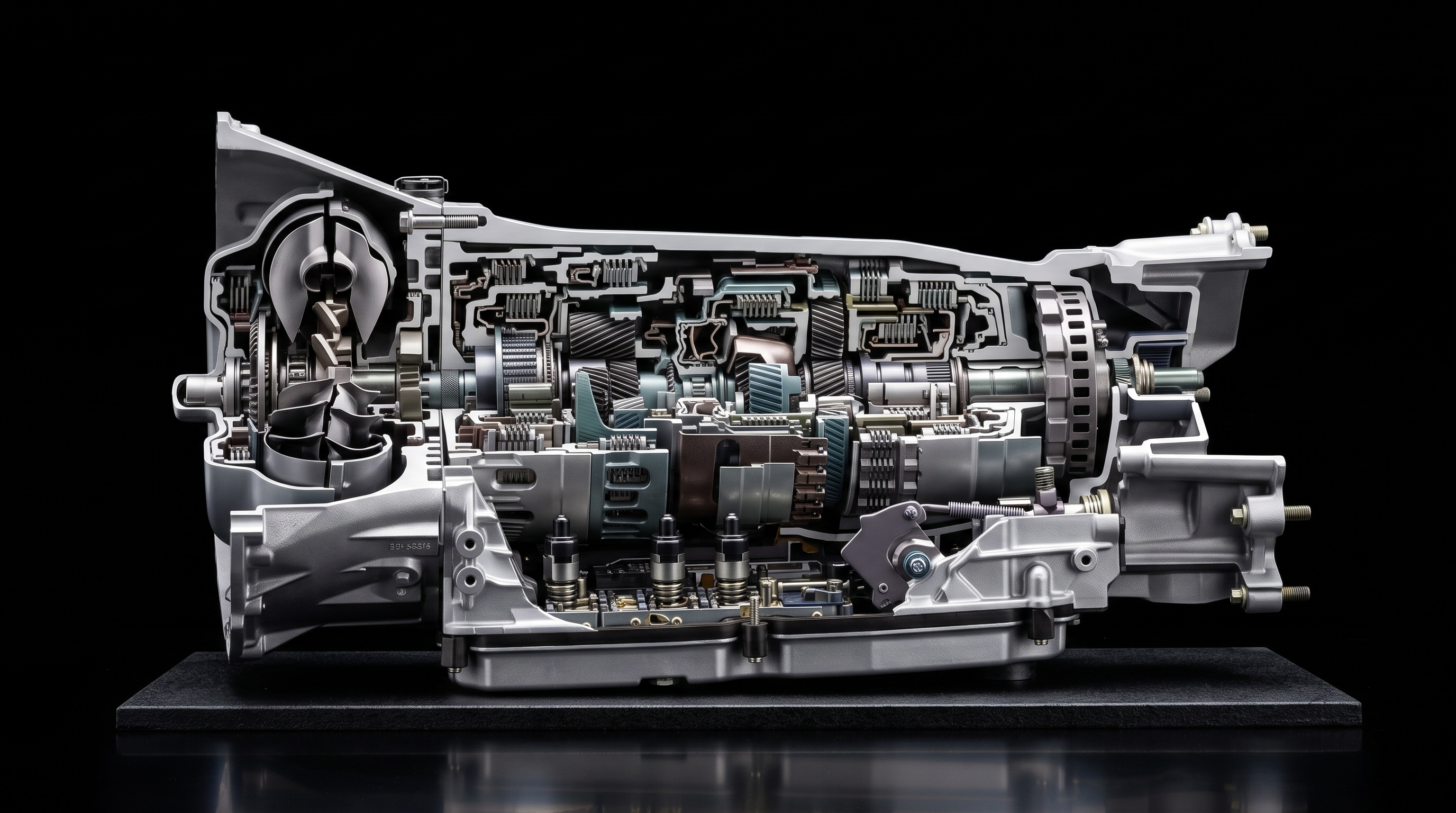

Mercedes-Benz 722.9 7G-TRONIC Automatic Transmission transmission

The world’s first seven-speed passenger-car automatic — and Mercedes-Benz’s NAG2 workhorse.

Introduced in 2003 as type 722.9 (W7A700 and related classifications), the 7G-TRONIC was the first seven-speed torque-converter automatic in a production passenger car. Fully electronic, with a wide ratio spread and adaptive shift programs, it replaced the 5G-TRONIC behind most six- and eight-cylinder engines while the older 722.6 stayed on for V12s and some applications the new gearbox could not yet take. From 2010 the 7G-TRONIC Plus revision (W7C700 / W7X700 and related) added start-stop support and a refined converter.

It covered virtually the entire longitudinal Mercedes-Benz range — C-, E- and S-Class, CLS, CLK/CL, SL/SLK, M-/GL-/GLK-Class and R-Class — until the 9G-TRONIC took over from 2013. Licensed and related units also appeared in Infiniti and SsangYong products.

Versions.

Every factory version of the 722.9.

VersionClassificationMax torqueApplications
722.901W7B700700 N·m (516 lb·ft)R230, V251, W164, C219, W251
722.902W7B700700 N·m (516 lb·ft)V251, W164, W203, C219, W251, X164
722.904W7B700700 N·m (516 lb·ft)R230, R231, V251, W164, C219, W251, X164
722.906W7B700700 N·m (516 lb·ft)R171, R172, R230, R231, V251, W164, W203, C219, W251
722.9A400W7A400400 N·m (295 lb·ft)W204, W205, W212
722.9X550W7X550550 N·m (406 lb·ft)C209, R171, W203, W204, W211, W212
722.9A700W7A700700 N·m (516 lb·ft)C215, C216, W211, W220, W221
722.9C700W7C700700 N·m (516 lb·ft)C218, R172, R231, W166, W204, W212, W222, X166, X204
722.9C1000W7C10001000 N·m (738 lb·ft)C216, R230, R231, W204, W212, W221

Stamped codes 722.901–.906 are from the old site’s parts table. Additional rows are grouped by factory classification (W7A400, W7X550, W7A700, W7C700, W7C1000) because public tables do not publish a complete .9xx-to-chassis map; chassis lists are representative. AMG SPEEDSHIFT MCT/TCT variants share the NAG2 gearset with multi-clutch launch hardware. Non-Daimler licensees (Infiniti RE7R24A, SsangYong) are noted in the overview.

Applications.

Every model shifted by the 722.9.
