Mercedes-AMG Engine

M156

The Mercedes-AMG M156 is a DOHC V8 gasoline piston engine.

Years
2006–2011
Configuration
V8
Fuel
Gasoline
Top power
525 PS

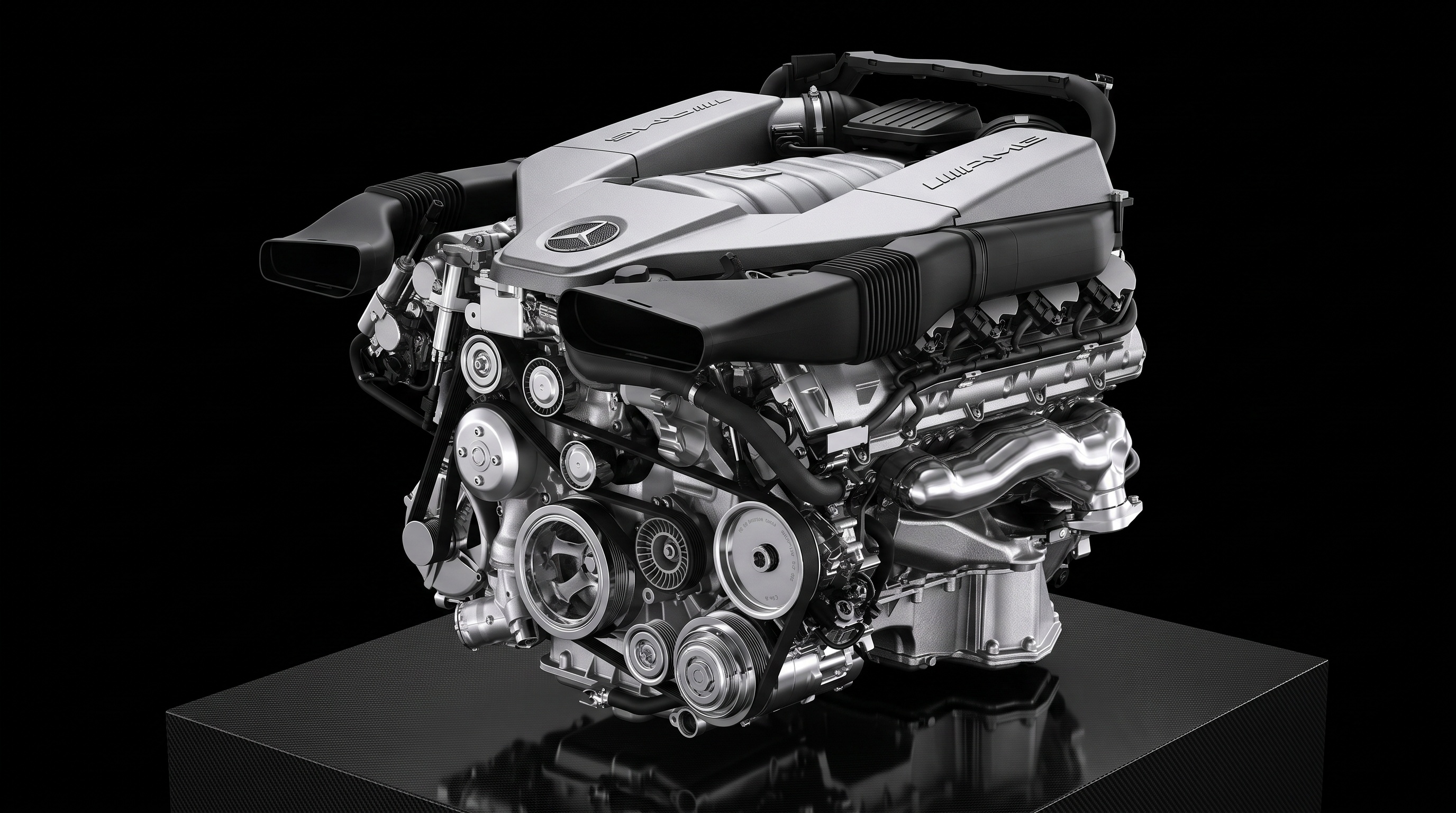

Mercedes-AMG M156 V8 engine

AMG's first engine from a blank sheet — a 6.2-liter, naturally aspirated V8 built one man, one engine in Affalterbach.

Designed by Bernd Ramler (who had drawn the Porsche Carrera GT's V10), the M156 shared almost nothing with Stuttgart's production V8s: closed-deck silicon-aluminum block, unique bore spacing, DOHC 32 valves with electro-hydraulic cam phasing, bucket followers and a variable-length intake. Displacement was 6,208 cc, yet AMG badged every car “6.3” in honor of the historic M100. It debuted for 2007 in the E 63 AMG and went on to power the R230 SL 63 AMG, the CLK 63, CL 63, CLS 63 and ML 63.

Hand-assembled under the one-man-one-engine plate, the M156 was the last great naturally aspirated AMG road V8 before the twin-turbo M157 took over. Its dry-sump racing cousin, the M159, lived on in the SLS AMG.

Versions.

Every factory version of the M156.

VersionDisplacementBore × StrokeCompressionPowerTorque
156.9806,208 cc 102.2 × 94.6 mm 11.3375 kW (503 hp; 510 PS) at 6,800 rpm630 N·m (465 lb·ft) at 5,200 rpm
156.9816,208 cc 102.2 × 94.6 mm 11.3386 kW (518 hp; 525 PS) at 6,800 rpm630 N·m (465 lb·ft) at 5,200 rpm
156.982 (E 62)6,208 cc 102.2 × 94.6 mm 11.3354 kW (475 hp; 481 PS) at 6,800 rpm630 N·m (465 lb·ft) at 5,000 rpm
156.982 (E 62)6,208 cc 102.2 × 94.6 mm 11.3373 kW (500 hp; 507 PS) at 6,800 rpm630 N·m (465 lb·ft) at 5,250 rpm
156.982 (E 62)6,208 cc 102.2 × 94.6 mm 11.3378 kW (507 hp; 514 PS) at 6,800 rpm630 N·m (465 lb·ft) at 5,200 rpm
156.9836,208 cc 102.2 × 94.6 mm 11.3378 kW (507 hp; 514 PS) at 6,800 rpm630 N·m (465 lb·ft) at 5,000 rpm
156.9846,208 cc 102.2 × 94.6 mm 11.3386 kW (518 hp; 525 PS) at 6,800 rpm630 N·m (465 lb·ft) at 5,200 rpm
156.985 (E 63)6,208 cc 102.2 × 94.6 mm 11.3336 kW (451 hp; 457 PS) at 6,800 rpm600 N·m (443 lb·ft) at 5,000 rpm
156.985 (E 63)6,208 cc 102.2 × 94.6 mm 11.3358 kW (480 hp; 487 PS) at 6,800 rpm600 N·m (443 lb·ft) at 5,000 rpm
156.985 (E 63)6,208 cc 102.2 × 94.6 mm 11.3373 kW (500 hp; 507 PS) at 6,800 rpm610 N·m (450 lb·ft) at 5,200 rpm
156.985 (E 63)6,208 cc 102.2 × 94.6 mm 11.3380 kW (510 hp; 517 PS) at 6,800 rpm620 N·m (457 lb·ft) at 5,200 rpm
156.985 (E 63)6,208 cc 102.2 × 94.6 mm 11.3386 kW (518 hp; 525 PS) at 6,800 rpm630 N·m (465 lb·ft) at 5,200 rpm

Applications.

Every model powered by the M156.
